About
This latest version of the Bykski DDC Pump Station Kit delivers power, versatility, and a real-time temperature display. The transparent PMMA body highlights the fluid you use. Aluminum cover plates and pump armor give the reservoir a distinctive look and design. Located at the bottom right of the station is a temperature gauge that provides real-time temperature readings. The included powerful DDC pump powers the station, ensuring excellent flow throughout your loop. Multiple mounting options are available, including a 120mm mounting bracket (B-BKT-105) and DIY elbow brackets.
Features
- Low Vibration / Quiet Operation
- Ultra Bright 5V A-RGB Integrated LEDs
- Digital Temperature Readout
Specifications
-
Material: Acrylic / Black Anodized Aluminum (not in contact with coolant)
-

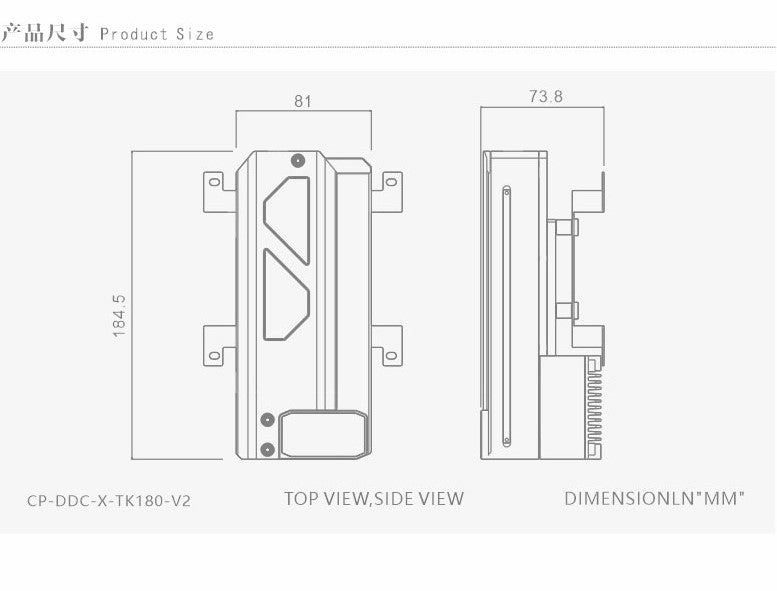

Dimensions: 184.5mm(H) x 81mm(W) x 73.8mm(D)
-
Thread: G 1/4in.
-
Inlets: 3
-
Outlets: 1
-
Pump Specifications: CP-PMD3COV-X with heatsink
Max RPM: 5000
Temperature: 45°C @ 4000RPM
Power: 12V (TDP15W)
Power Connector: 4-Pin PWM
Voltage Consumption: DC12V, TDP 15W
Voltage Range: 10-15V
Flow Rate: 600L/H
Output Head: 6 Meters
Connector: 4-Pin Molex and 4-Pin Fan (Tach+PWM only)
MTBF: 50,000 Hours
Compatibility
- Mount Type: 120mm Mount Bracket or DIY
- Loop: Non-Aluminum
Included Parts
- 1x 180mm Reservoir Station
- 1x DDC Pump with Heatsink (installed)
- 1x B-BKT-105 Bracket
- 2x Elbow Bracket
Unsere Pumpen sind nur für die Verwendung von Aquacomputer DP-Ultra, bzw. Alphacool CKC und Destiliertem Wasser freigegeben, der Betrieb mit anderen Flüssigkeiten geschieht auf eigene Gefahr und führt zum Erlöschen sämtlicher Garantie und Gewährleistung bei Schäden die im Zusammenhang mit Flüssigkeit entstehen.
This latest version of the Bykski DDC Pump Station Kit delivers power, versatility, and a real-time temperature display. The transparent PMMA body highlights the fluid you use. Aluminum cover plates and pump armor give the reservoir a distinctive look and design. Located at the bottom right of the station is a temperature gauge that provides real-time temperature readings. The included powerful DDC pump powers the station, ensuring excellent flow throughout your loop. Multiple mounting options are available, including a 120mm mounting bracket (B-BKT-105) and DIY elbow brackets.
Features
- Low Vibration / Quiet Operation
- Ultra Bright 5V A-RGB Integrated LEDs
- Digital Temperature Readout
Specifications
-
Material: Acrylic / Black Anodized Aluminum (not in contact with coolant)
-
Dimensions: 184.5mm(H) x 81mm(W) x 73.8mm(D)
-
Thread: G 1/4in.
-
Inlets: 3
-
Outlets: 1
-
Pump Specifications: CP-PMD3COV-X with heatsink
Max RPM: 5000
Temperature: 45°C @ 4000RPM
Power: 12V (TDP15W)
Power Connector: 4-Pin PWM
Voltage Consumption: DC12V, TDP 15W
Voltage Range: 10-15V
Flow Rate: 600L/H
Output Head: 6 Meters
Connector: 4-Pin Molex and 4-Pin Fan (Tach+PWM only)
MTBF: 50,000 Hours
Compatibility
- Mount Type: 120mm Mount Bracket or DIY
- Loop: Non-Aluminum
Included Parts
- 1x 180mm Reservoir Station
- 1x DDC Pump with Heatsink (installed)
- 1x B-BKT-105 Bracket
- 2x Elbow Bracket
Unsere Pumpen sind nur für die Verwendung von Aquacomputer DP-Ultra, bzw. Alphacool CKC und Destiliertem Wasser freigegeben, der Betrieb mit anderen Flüssigkeiten geschieht auf eigene Gefahr und führt zum Erlöschen sämtlicher Garantie und Gewährleistung bei Schäden die im Zusammenhang mit Flüssigkeit entstehen.
