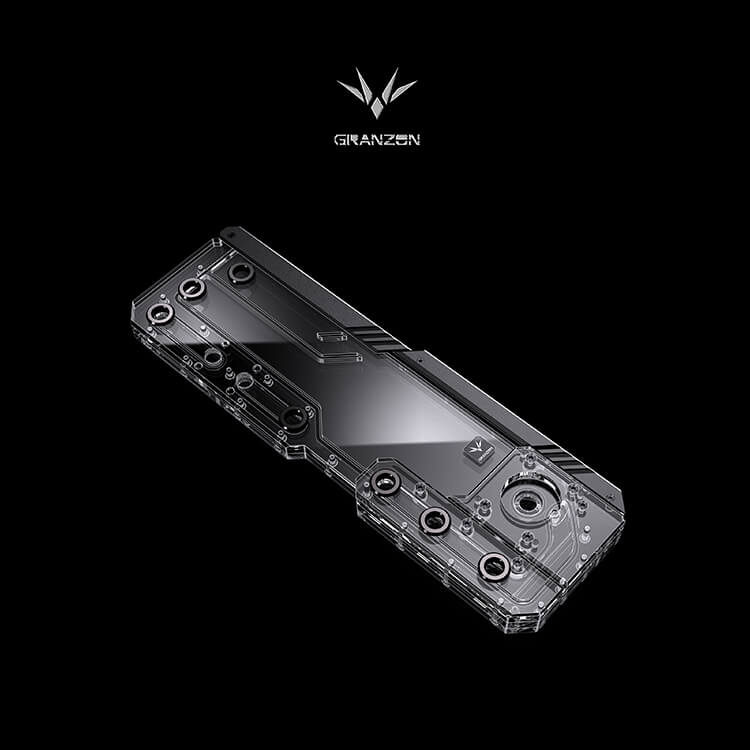

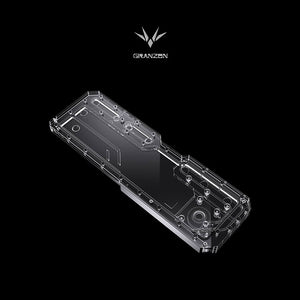

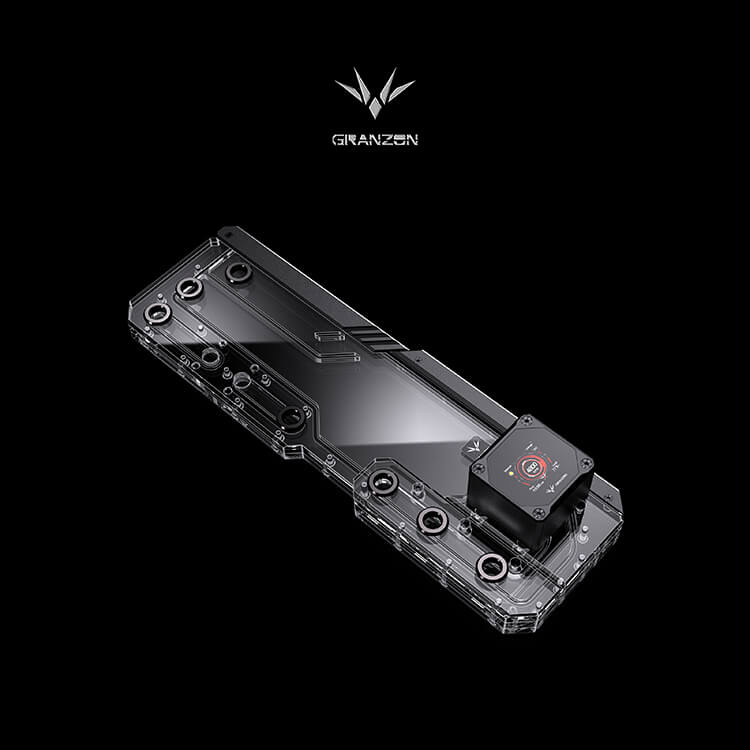

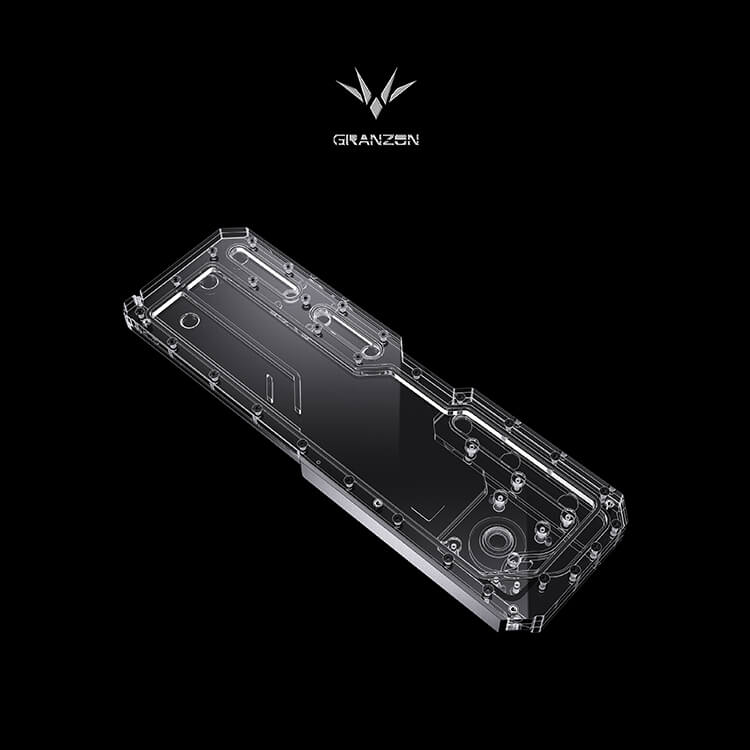

Distribution Plate from Granzon suitable for the ASUS ROG Hyperion GR701 case including Digital Display DDC pump.

Specifications:

• Material: PMMA
• Thread: G 1/4
• Pump mounting: DDC
• LED: Yes, 5V
• Manufacturer: Granzon
• Manufacturer code: GC-AS-GR701

Compatible with:

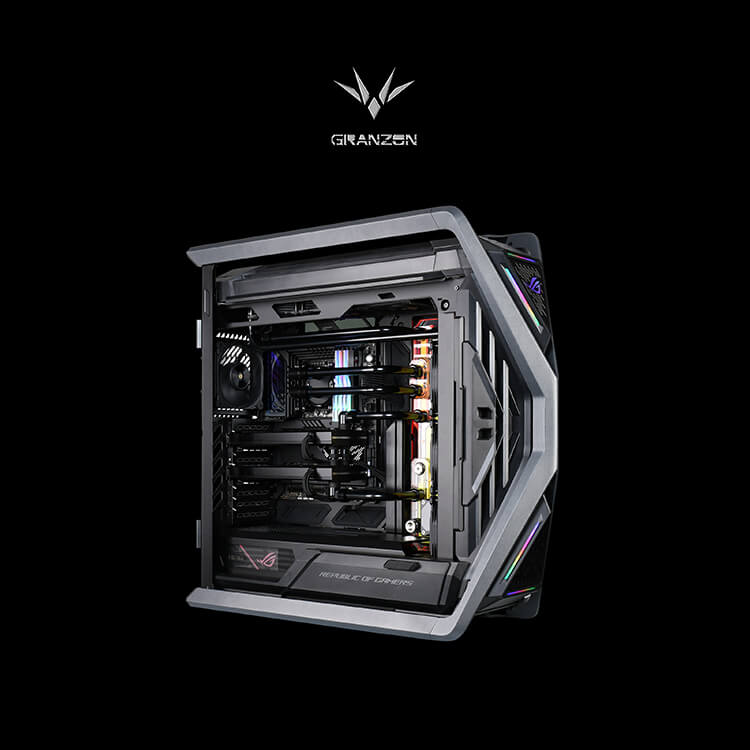

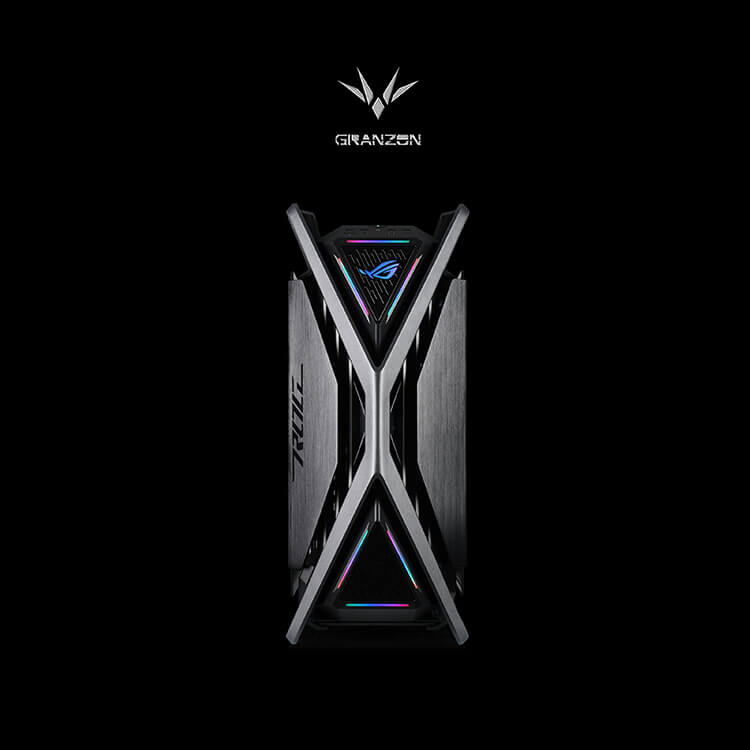

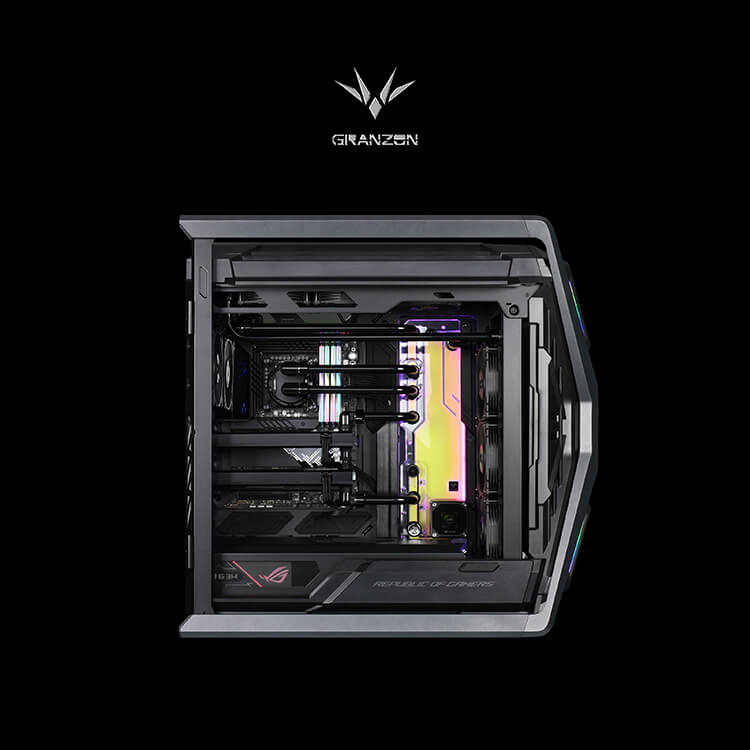

ASUS ROG Hyperion GR701

Specifications - DDC Pump

• Heatsink Material: Aluminum
• current: standard 4-pin MOLEX & PWM 4-pin header
• Voltage: 10V - 15V DC
• MTBF (Mean Time Between Failure): 50,000 hours, which is equivalent to a service life of 5 years
• Maximum flow rate: ~ 600 l/h
• Max RPM: 5000
• Size: 62 x 62 x 58mm
• The performance depends on the structure of the loop

Scope of delivery:
- Distroplate
- Mounting material
- Digital Display DDC Pump (Granzon GFM III)

Warning:
- All our distroplates are made of PMMA/acrylic and must never come into contact with liquids containing alcohol!
- DDC pumps are liquid-lubricated, therefore it is important to ensure that the pump does not run dry (even when filling), otherwise the pump may be destroyed!
- We recommend using e.g. Aquacomputer - Double Protect Ultra, distilled water or other suitable liquids for PC water cooling systems, the use of pastel liquids or liquids with many colour particles can lead to discolouration of the Distro Plate. Pastel liquids can also lead to the pump sticking and not being able to start properly.
